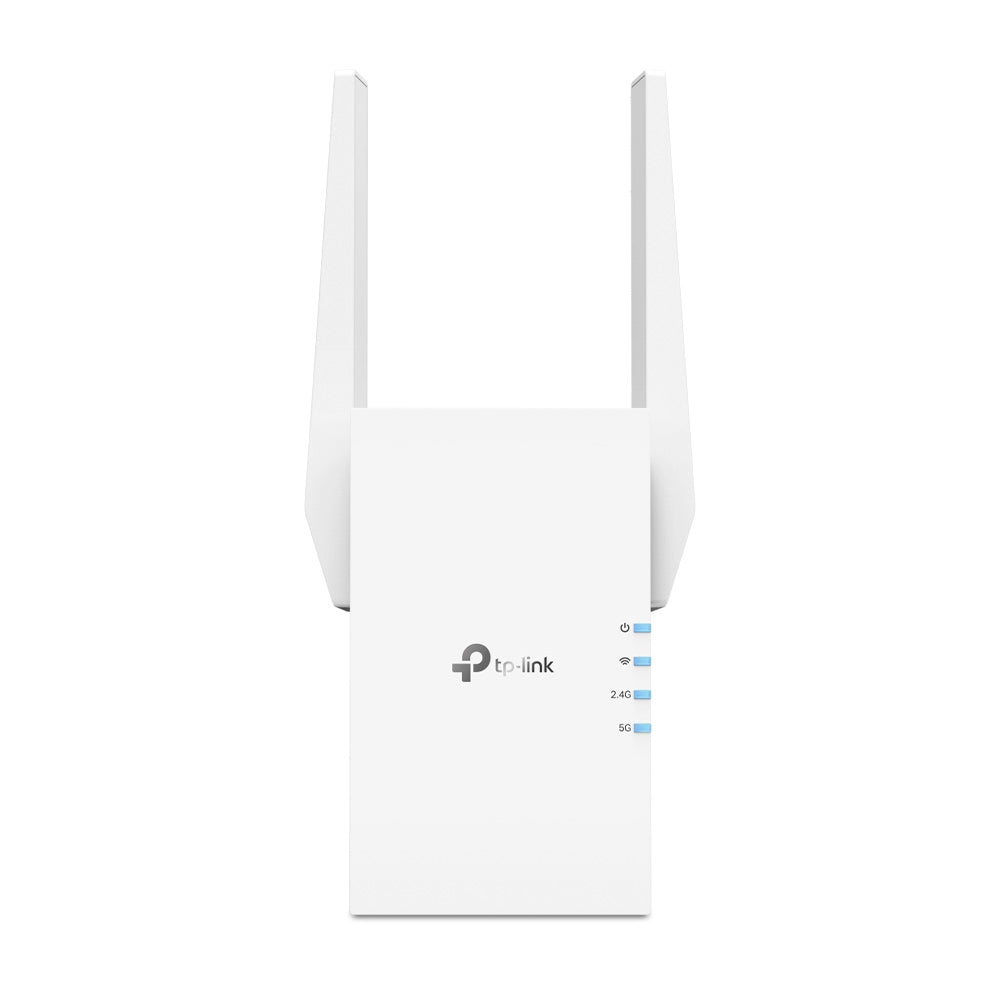

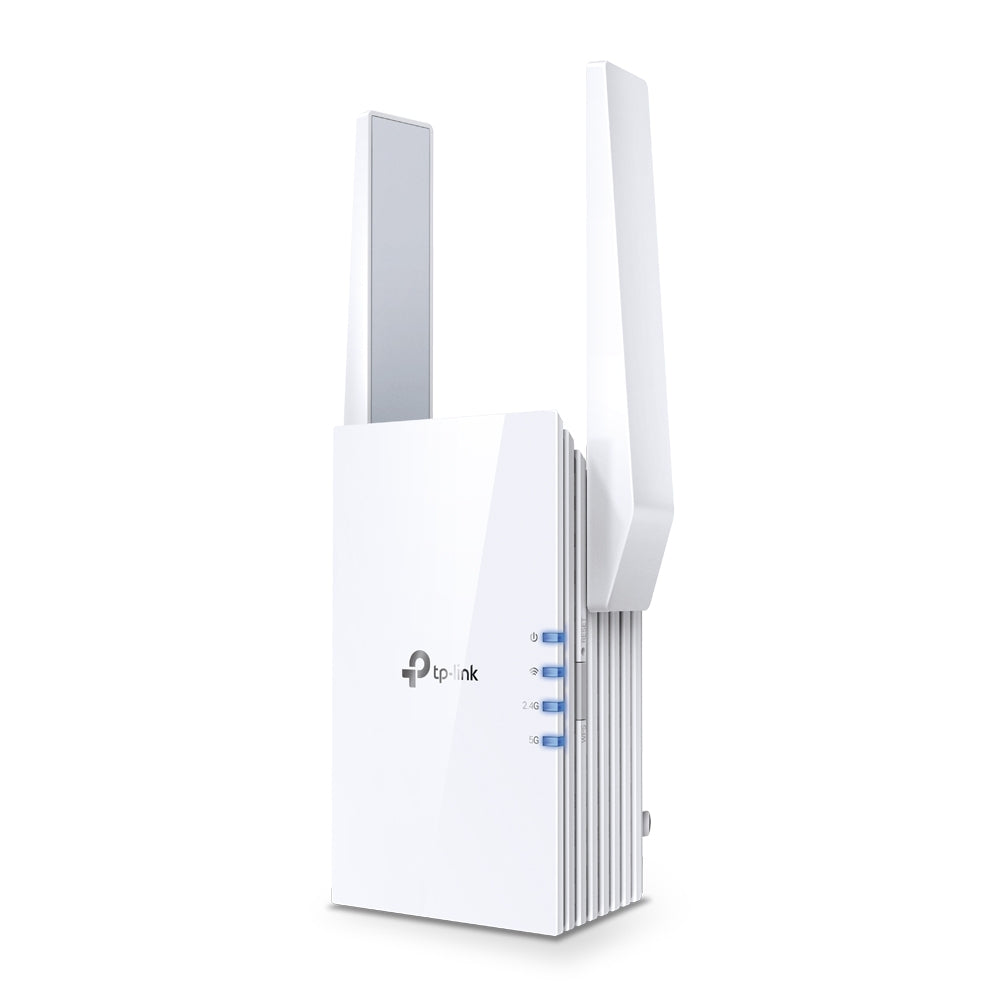

TP-Link RE705X AX3000 Mesh WiFi 6 Extender 574Mbps@2.4GHz 2402Mbps@5GHz 1x1GBps WPS 2xAntenna
• Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology
• Uninterrupted Streaming - Easily create a TP-Link OneMesh™ network for seamless whole home WiFi coverage
• AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability
• Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles
• App Control - Easy Setup and management with your network using the TP-Link Tether app
HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS Button, Reset Button
Power Consumption 12.6W
Dimensions ( W x D x H ) 97*46*158
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
Reception Sensitivity 5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -61dBm
11ax HE160 MCS11: -59dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
Transmit Power CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm
Wireless Modes Range Extender / Access Point
Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security WEP, WPA, WPA2, WPA3
OTHERS
Certification CE, RoHS
Package Contents Wi-Fi Range Extender RE705X
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
